Hose Reels
Reel It In With Unique's Hose Reel
Unique Hose Reels is a Custom Manufacturer of Hose Reels, Tank Manifold Systems and Valves, we aim to deliver real world solutions to the industry we serve through dedication to innovation, quality and sustainability
Unique Hose Reels Heavy Duty Hose Or Cable Reel Services.
Strength and Reliability for Tough Jobs:
At Unique Hose Reels we specialize in heavy duty hose reel and cable reel solutions designed to handle the industry’s toughest challenges. Our heavy duty hose reels and cable reels are engineered for durability, efficiency and high performance, making them ideal for industrial, commercial, and large-scale applications.
What is a Hose and Cable Reel?
Reels are devices used in various industrial settings to efficiently store, dispense, and manage hoses and cables. These reels are designed to improve safety, organization, and convenience when handling hoses and cables for tasks such as fluid transfer, air compression, and other applications in industrial environments.
Fabricated Fluid Path
Specializing in custom electric, hydraulic, manual, air and spring rewind reels from 1" to 4".
R2 Series 1" Fluid Path Water Hose Reels
For 1/2″ to 1″ I.D. Hose
Outlet: 1/2″ to 1″ standard male / female NPT gooseneck threads.
Inlet: 1/2″ up to 1″ Female/Male NPT 90° Swivel Joint.

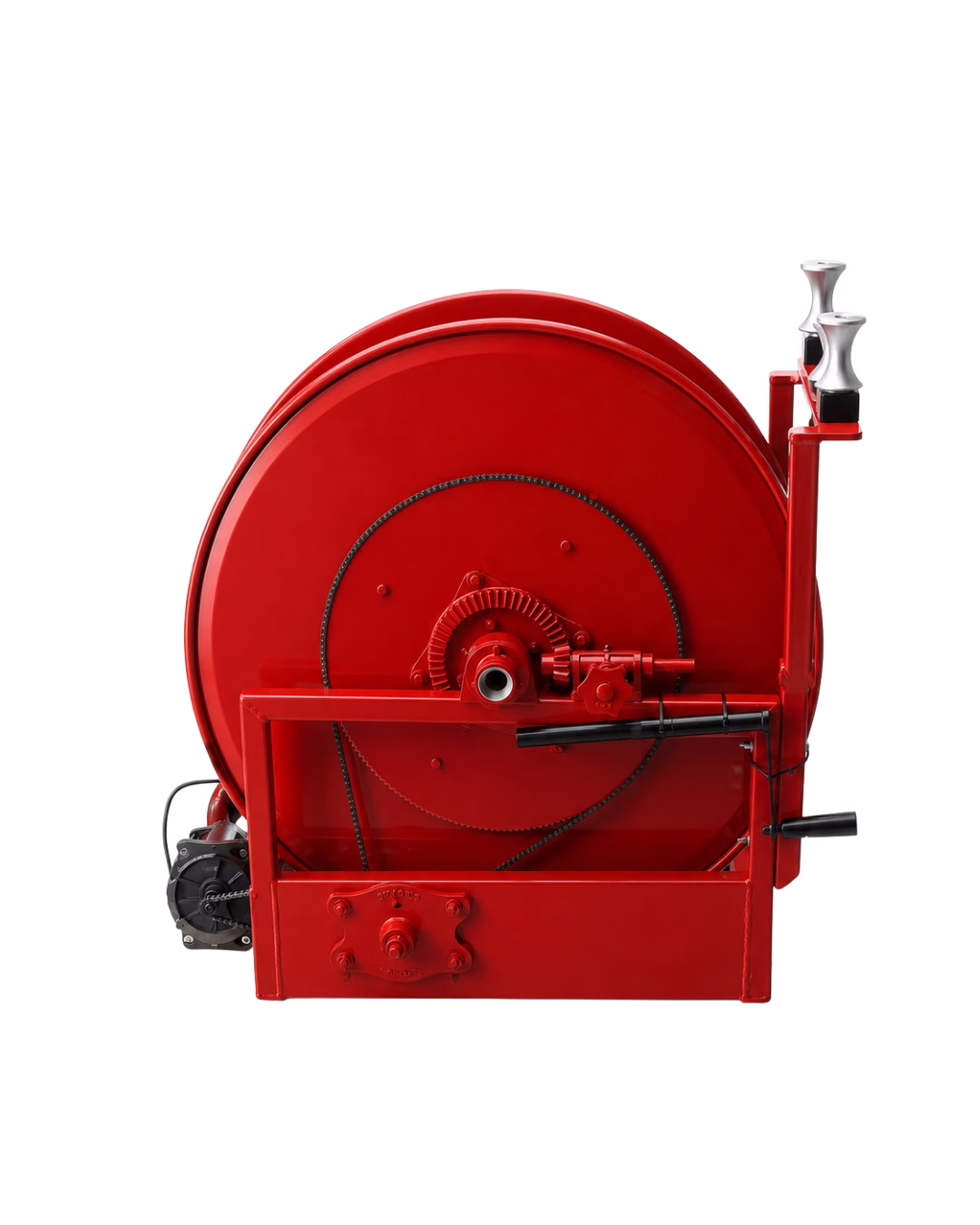

R5 Series Fire Hose Reel
For 1″ to 1 1/2″ I.D. Hose
Outlet: 1″, 1 1/4″ & 1 1/2″ standard male / female NPT gooseneck threads. Other sizes and / or threads are easily accommodated, per specifications.
Inlet: 2″ straight Victaulic x 1 1/2″ NPT female is standard.
- 1 1/2″ male NPT straight swivel joint may be specified at no extra cost.
- 2″ Victaulic x 90° is available at additional cost.
R33 Series Fuel Delivery Hose Reels
For 1 1/4″ to 2″ I.D. Hose (INVERTED STYLE)
Outlet: 1 1/4″ to 2″ standard male / female NPT gooseneck threads. Other sizes and / or threads are easily accommodated, per specifications.
Inlet: 2″ Victaulic x 90º is standard. 2″ Victaulic x 1 1/2 ” NPTF straight (optional).
Aluminum Casted Fluid Path
Specializing in custom electric, hydraulic, manual, air and spring rewind reels from 1" to 4".
R4 Series 2"Fluid Path Hose Reel
R4 Series 2″ Fluid Path Hose Reels
For 1 1/2″ Through 2″ I. D. Hose
Outlet: 1 1/2″ or 2″ standard male / female NPT gooseneck threads. Other sizes and / or threads are easily accommodated, per specifications.
Inlet: 2″ straight Victaulic is standard. 2″ Victaulic x 90° is available at additional cost.
R7 Series Aviation Hose Reel
R7 Series 3″ or 4″ Fluid Path Hose Reels
(3″ or 4″ FLUID PATH) For 2″ to 4″ I.D. Hose
Outlet: 2″ to 4″ standard male / female NPT gooseneck threads. Other sizes and / or threads are easily accommodated, per specifications.
Inlet: 3″ or 4″ straight Victaulic. 3″ or 4″ Victaulic x 90 degrees ia available at extra cost.
R33 Series Fuel Delivery Hose Reels
For 1 1/4″ to 2″ I.D. Hose (INVERTED STYLE)
Outlet: 1 1/4″ to 2″ standard male / female NPT gooseneck threads. Other sizes and / or threads are easily accommodated, per specifications.
Inlet: 2″ Victaulic x 90º is standard. 2″ Victaulic x 1 1/2 ” NPTF straight (optional).
Single Wrap, Spring Rewind & Cable Reels
Specializing in custom electric, hydraulic, manual, air and spring rewind reels from 1" to 4".

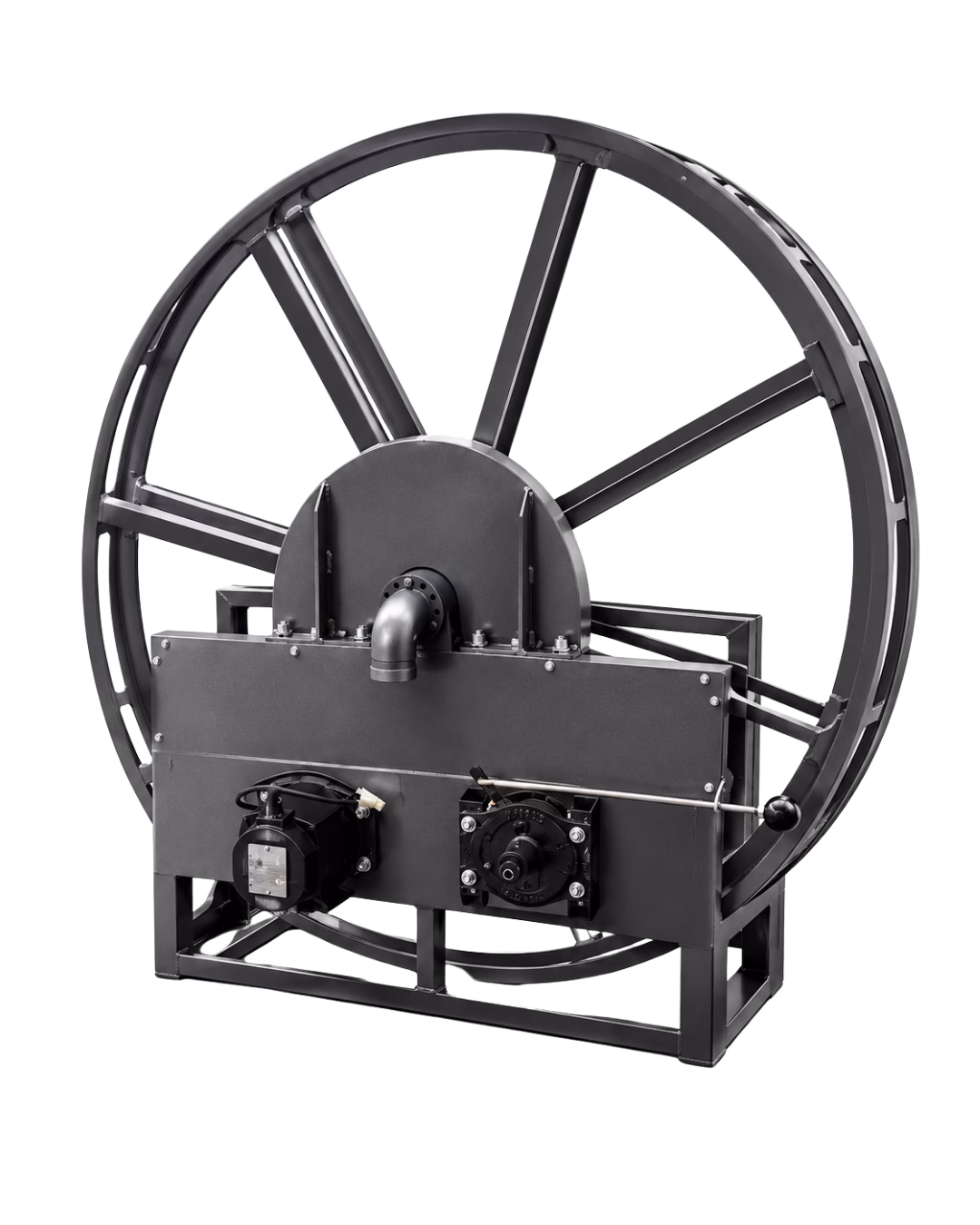

R21000 Series Aviation Hose Reels
R21000 Series Single Wrap Reels (1″ to 3″)
This R21000 Series; single wrap hose reel is excellent for petroleum and aviation services.
Rewind: The R21000 Series has a wide selection of options in terms of reeling such as unique chain, direct drive or sprocket powered by A.C. or D.C. electric motor, compressed air motor or hydraulic motor. Whatever your application may require, whether it be electric powered reels or manual reels you can look to Unique Hosereels to supply it and suggest what we think is best based on your application.
R8 Series Retractable Hose Reels
R8 Series Retractable 1/2″, 3/4″, and 1″ Fluid Path Hose Reels
1/2″, 3/4″ or 1″ Fluid Path For 1/4″ through 1” I.D. HOSE
Inlet: 1/2″ up to 1″ Female/Male NPT 90º Swivel Joint.
Gooseneck: 1/2″ up to 1″ Female/Male NPT.
Rear Position: You must specify roller position BW, VW or TW. If roller position is not specified, reels will be shipped with rollers in POSITION BW.
RC21 Series Cable Reel
Welded steel frame providing exceptional durability.
Spool assembly is fabricated from heavy gauge steel and rolled head edges for added strength and safety.
Bearings self-lubricating and self-aligning, requiring little maintenance.
Slip rings available – require the gauge of the cable, how many conductors, voltage and amperage and weight of cable to be able to meet your requirements.
Static Grounding & Custom Reels
Specializing in custom electric, hydraulic, manual, air and spring rewind reels from 1" to 4".
UGR50-100 Static Grounding Reel
UGR50-100 Series Hand Rewind Static Grounding Reels
Static grounding reels provide for the payout, retraction and compact storage of 50 and 100 feet of static grounding cable, use in any flammable atmosphere when a build-up of static electricity could cause a spark and subsequent explosion.
Series UGR can be supplied with or without 3/32″ diameter galvanized carbon steel aircraft cable X3/16″ OD, clear PVC cover & “Y” bracket
40,000 P.S.I Jetter Reel
This custom fabricated dual fluid path works up to 40,000 PSI to withstand the toughest jobs.
These rugged, corrosion-resistant reels are suitable for a wide range of water and fuel applications.
It’s equipped with self-reversing ball screw to keep the operator’s hands free.
These reels can be outfitted to have up to 4 different size outlets ranging between 1/4” JIC – 3/4” JIC and 1/4” NPT – 1”NPT.
Hydraulic Stainless Steel LP Gas Reel
This custom fabricated hydraulic motor driven stainless steel LP gas reel, comes with straight or 90 degrees ball bearing swivel joint, with 1″ – 1 1/2″ female NPT threads.
Pressures of 1000 P.S.I (68 Bars). Standard fluid temperature from -40 to 300 degrees F.
A self reversing hose guide is also fitted to keep the operator’s hands free.
Custom Fabricated Dual Fluid Path Jetter Hose Reels
Engineered to Withstand the Pressure — Up to 40,000 PSI
When your job demands extreme pressure, dual-fluid functionality, and unmatched durability, our Custom Fabricated Dual Fluid Path Jetter Hose Reels deliver—every time.
Built for professionals in industrial cleaning, hydro excavation, pipeline jetting, and fuel or water transfer, these heavy-duty reels are custom-designed to meet the unique challenges of high-pressure, high-performance operations.
Dual Fluid Path. Single Solution. Zero Compromises.
Our dual-path system allows you to run two separate fluid streams—for example, high-pressure jetting water and lubricants or diesel fuel—through a single, compact reel solution. That means less equipment clutter, faster setup, and seamless switching between fluids.
Perfect for applications where mobility, precision, and versatility are key.
Built to Take on the Toughest Jobs
✅ Rated up to 40,000 PSI:
Capable of handling extreme pressure environments, making it ideal for heavy industrial jetting, pipe clearing, and scale removal.
✅ Custom Fabrication:
Every reel is fabricated to your specifications—hose diameter, length, mount style, swivel type, and more. If you can imagine it, we can build it.
✅ Corrosion-Resistant Construction:
Manufactured using high-grade stainless steel, aluminum, or coated steel, our reels resist rust and chemical wear in even the harshest environments—offshore, chemical plants, refineries, or wastewater facilities.
✅ Compact, Rugged Design:
Engineered for tight spaces and mobile rigs, while withstanding the physical abuse of daily industrial work.
✅ Precision Sealing & Swivel Engineering:
Leak-free performance under dual-fluid use, even at max PSI. Built with high-tolerance bearings and seals rated for constant exposure to abrasive or corrosive materials.
Applications
Industrial Pipe Jetting
Hydro Excavation
Oil & Gas Downhole Cleaning
Fuel & Water Transfer on Mobile Rigs
Municipal Sewer Maintenance
Tank Cleaning and Descaling
Utility and Emergency Services Vehicles
These reels are workhorses in industries where pressure meets precision and downtime isn’t an option.
Why Dual Fluid Path?
In many operations, a single-fluid system just doesn’t cut it. Whether you’re running a detergent and rinse stream, diesel and water, or primary and secondary jet lines, a dual fluid path reel offers:
Faster Deployment and Rewind
Less Setup Time
Reduced Hose Wear
Improved Site Safety and Efficiency
All while maintaining a compact footprint and maximum control.
Technical Highlights
Pressure Rating: Up to 40,000 PSI
Material Options: Stainless steel, powder-coated steel, anodized aluminum
Mounting Options: Skid, wall, truck, or trailer mount
Hose Compatibility: Customizable for all major brands and types
Swivel Types: Dual-path, stainless, chemical-resistant options available
Optional Features: Motorized rewind, locking pin systems, brake controls, hose guides
Custom Means Custom
No two jobs are the same—so why should your hose reel be?
Whether you’re outfitting a hydroblasting trailer, a municipal jetting truck, or a mobile fuel transfer skid, we work with you to deliver a solution that fits your exact needs. From CAD design to final weld, you’ll get a product built for your pressure, your space, and your field.
Why Do I Need A Reel?
A reel is used to efficiently wind up and store a hose or cable – this creates a safer workplace and allows for a more efficient and easier workflow.
- The efficiency of a reel is in the storage of your hose or cable, which ensure its readily available in any environment its needed.
- A reel helps keep your hose or cable neatly wound and stored, preventing tangles and kinks. This makes for an organized and neat workspace and also ensures that your hose or cable is always ready for use without the hassle of unraveling knots.
- Hose and Cable reels are great for space saving; by mounting the hose or cable reel on a wall or placing it on a stand, you free up valuable floor space. A reel keeps your hose or cable off the floor to avoid tripping and other workplace accidents that may cause work stoppage or costly insurance issues.
When it comes to demanding environments, standard reels just won’t do. Unique’s reels are built with durability and reliability, that’s why our heavy-duty hose reel and cable reel becomes necessary. These robust reels are built to withstand extreme conditions, whether you are dealing with high pressure, corrosive materials, or frequent use. Our team at Unique Hose Reels is dedicated to providing you with exceptional heavy duty hose reel and cable reel services, ensuring reliability and performance you can count on.
Taking On The Industry's Toughest Reel Challenge!
We produce a broad range of custom products, and are a leader in this market, with industrial quality designed and engineered hose and cable reels, petroleum products and manifolds…
